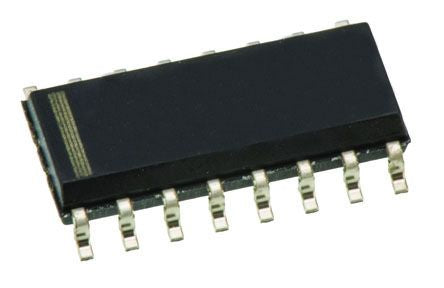

Texas Instruments SN75C1406DW, Multichannel Line Transceiver, RS-232 3-TX 3-RX, 16-Pin SOIC [SN75C1406DW]; 145-0632
0₫
Mã kho: 1450632
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 3 |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 16 |
| Number of Receivers | 3 |
| Data Rate | 120kbps |
| Interface Standards | RS-232 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Height | 2.35mm |
| Length | 10.28mm |
| Dimensions | 10.28 x 7.52 x 2.35mm |
| Number of Drivers per Line | 1 |
| Power Supply Type | Dual |
| Typical Dual Supply Voltage | ±12 V, 5 V |
| Number of Receivers per Line | 1 |
| Width | 7.52mm |
