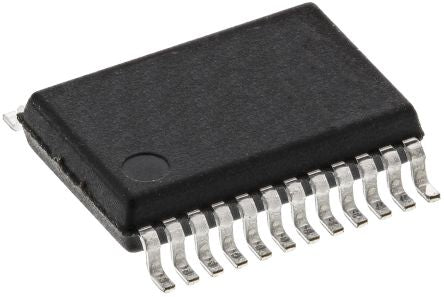

Texas Instruments MAX208IDB, Multichannel Line Transceiver [MAX208IDB]; 145-6186
0₫
Mã kho: 1456186
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 4 |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 24 |
| Number of Receivers | 4 |
| Typical Single Supply Voltage | 5 V |
| Data Rate | 120kbps |
| Interface Standards | RS-232 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Height | 1.95mm |
| Number of Drivers per Line | 1 |
| Dimensions | 8.2 x 5.3 x 1.95mm |
| Power Supply Type | Single |
| Length | 8.2mm |
| Width | 5.3mm |
| Number of Receivers per Line | 1 |
