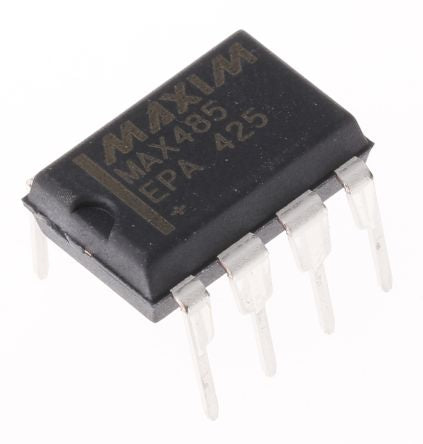

RS-485/RS-422 TRANSCEIVER LOW POWER DIP8 [MAX485EPA+]; 189-8099
0₫
Mã kho: 1898099
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 1 |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 8 |
| Number of Receivers | 1 |
| Typical Single Supply Voltage | 5 V |
| Data Rate | 2.5Mbps |
| Number of Transceivers | 1 |
| Interface Standards | RS-422, RS-485 |
| Receiver Signal Type | Differential |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 9.91mm |
| Power Supply Type | Single |
| Dimensions | 9.91 x 7.87 x 2.03mm |
| Width | 7.87mm |
| Height | 2.03mm |
| Number of Drivers per Line | 32 |
| Number of Receivers per Line | 32 |
