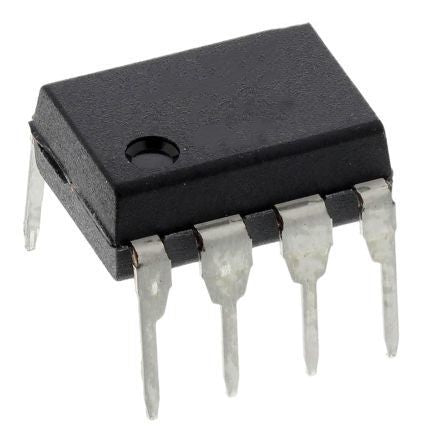

MAX3485EPA+,RS-422/RS-485 Interface IC [MAX3485EPA+]; 191-3951
0₫
Mã kho: 1913951
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 1 (RS-485/RS-422) |
| Package Type | DIP |
| Mounting Type | Through Hole |
| Pin Count | 8 |
| Number of Receivers | 1 (RS-485/RS-422) |
| Typical Single Supply Voltage | 3.3 V |
| Data Rate | 10000kbit/s |
| Interface Standards | RS-422, RS-485 |
| Transmitter Signal Type | Differential |
| Receiver Signal Type | Differential |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Width | 7.87mm |
| Height | 4.45mm |
| Number of Receivers per Line | 1 (RS-485/RS-422) |
| Dimensions | 9.91 x 7.87 x 4.45mm |
| Power Supply Type | Single |
| Length | 9.91mm |
| Number of Drivers per Line | 1 (RS-485/RS-422) |
