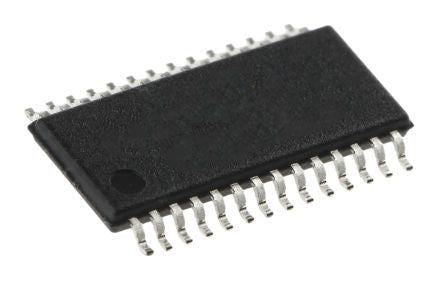

1µA True +3V to +5.5V RS-232 TxCVR [MAX3243EUI+]; 190-6236
0₫
Mã kho: 1906236
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 3 (RS-232) |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Number of Receivers | 5 (RS-232) |
| Typical Single Supply Voltage | 3 → 5.5 V |
| Data Rate | 120kbit/s |
| Interface Standards | RS-232 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Height | 0.95mm |
| Dimensions | 9.8 x 4.5 x 0.95mm |
| Number of Receivers per Line | 5 (RS-232) |
| Width | 4.5mm |
| Length | 9.8mm |
| Power Supply Type | Single |
| Number of Drivers per Line | 3 (RS-232) |
