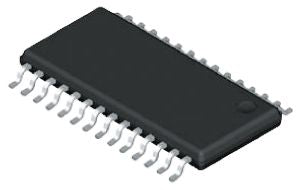

3 TO 5.5V LOW-POWER RS-232 TRANSCEIVER [MAX3237EAI+]; 190-0718
0₫
Mã kho: 1900718
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 5 |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Number of Receivers | 3 |
| Typical Single Supply Voltage | 3 → 5.5 V |
| Data Rate | 1Mbps |
| Interface Standards | EIA/TIA-232/ EIA/TIA-562/ RS-232 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Receivers per Line | 1 |
| Width | 5.38mm |
| Length | 10.33mm |
| Number of Drivers per Line | 1 |
| Height | 1.78mm |
| Power Supply Type | Single |
| Dimensions | 10.33 x 5.38 x 1.78mm |
