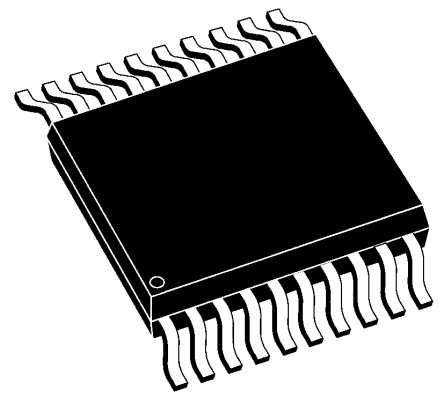

DRIVER/RÉCEPTEUR RS232 DOUBLE [MAX3224EEAP+]; 190-0605
0₫
Mã kho: 1900605
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 2 |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Number of Receivers | 2 |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Data Rate | 250kbps |
| Number of Transceivers | 2 |
| Interface Standards | EIA/TIA-232, RS-232, V.24, V.28 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 7.33mm |
| Dimensions | 7.33 x 5.38 x 1.78mm |
| Height | 1.78mm |
| Power Supply Type | Single |
| Number of Drivers per Line | 1 |
| Width | 5.38mm |
| Number of Receivers per Line | 1 |
