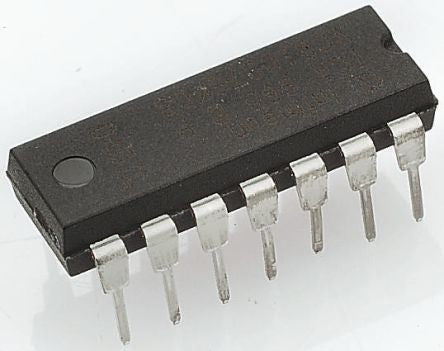

Maxim MAX3080CPD+, Line Transceiver [MAX3080CPD+]; 146-0999
0₫
Mã kho: 1460999
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 1 |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 14 |
| Number of Receivers | 1 |
| Typical Single Supply Voltage | 5 V |
| Data Rate | 115kbps |
| Number of Transceivers | 1 |
| Interface Standards | EIA/TIA-485, RS-422, RS-485 |
| Transmitter Signal Type | Differential |
| Receiver Signal Type | Differential |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Height | 4.45mm |
| Number of Receivers per Line | 256 |
| Length | 19.43mm |
| Power Supply Type | Single |
| Number of Drivers per Line | 256 |
| Dimensions | 19.43 x 7.87 x 4.45mm |
| Width | 7.87mm |
