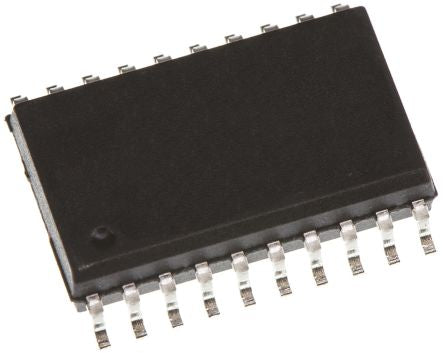

QUAD TRANSMITTER/RECEIVER RS-232 [MAX238EWG+]; 189-7638
0₫
Mã kho: 1897638
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 4 |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Number of Receivers | 4 |
| Typical Single Supply Voltage | 4.5 → 5.5 V |
| Data Rate | 120kbps |
| Interface Standards | EIA/TIA-232, RS-232, RS-485, V.24, V.28 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Power Supply Type | Single |
| Number of Drivers per Line | 1 |
| Length | 13mm |
| Height | 2.35mm |
| Width | 7.6mm |
| Dimensions | 13 x 7.6 x 2.35mm |
| Number of Receivers per Line | 1 |
