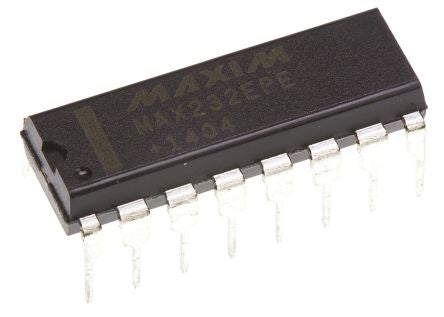

RS-232 DRIVERS/RECEIVERS, MAX232EPE+ [MAX232EPE+]; 189-7628
0₫
Mã kho: 1897628
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 2 |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 16 |
| Number of Receivers | 2 |
| Typical Single Supply Voltage | 5 V |
| Data Rate | 120kbps |
| Number of Transceivers | 2 |
| Interface Standards | EIA/TIA-232-E/ RS-232/ V.24/ V.28 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Receivers per Line | 1 |
| Power Supply Type | Single |
| Dimensions | 19.43 x 7.87 x 4.45mm |
| Height | 4.45mm |
| Length | 19.43mm |
| Number of Drivers per Line | 1 |
| Width | 7.87mm |
