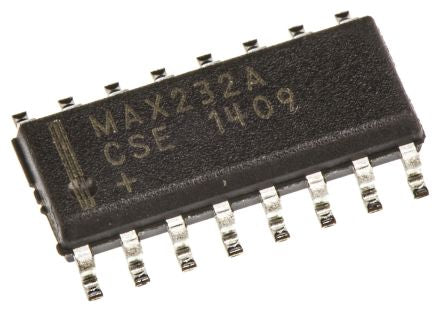

Maxim MAX232ACSE+, Line Transceiver, EIA/TIA-232-E/ RS-232/ V.24/ V.28 2-TX 2-RX, 5 V, 16-Pin SOIC [MAX232ACSE+]; 622-7835
0₫
Mã kho: 6227835
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 2 |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 16 |
| Number of Receivers | 2 |
| Typical Single Supply Voltage | 5 V |
| Data Rate | 200kbps |
| Interface Standards | EIA/TIA-232-E/ RS-232/ V.24/ V.28 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Width | 4mm |
| Height | 1.5mm |
| Number of Receivers per Line | 1 |
| Length | 10mm |
| Dimensions | 10 x 4 x 1.5mm |
| Number of Drivers per Line | 1 |
| Power Supply Type | Single |
