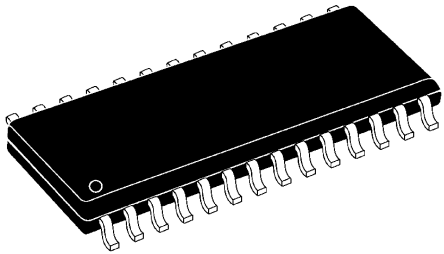

MAX211ECWI+, Line Transceivers [MAX211ECWI+]; 192-3185
0₫
Mã kho: 1923185
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 4 (RS-232) |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Number of Receivers | 5 (RS-232) |
| Typical Single Supply Voltage | 4.5 → 5.5 V |
| Data Rate | 120kbit/s |
| Interface Standards | RS-232 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single-Ended |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Width | 7.6mm |
| Dimensions | 18.1 x 7.6 x 2.35mm |
| Power Supply Type | Single |
| Length | 18.1mm |
| Height | 2.35mm |
| Number of Drivers per Line | 4 (RS-232) |
| Number of Receivers per Line | 5 (RS-232) |
