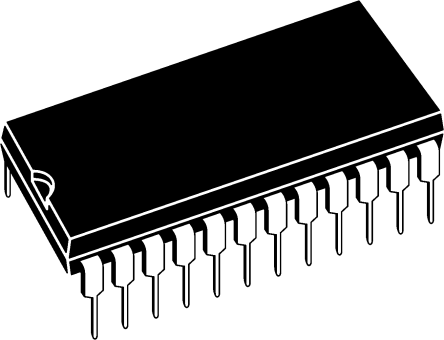

Maxim MAX208ECNG+, Line Transceiver, EIA/TIA-232-E, RS-232, V.28 4-TX 4-RX, 5 V, 24-Pin PDIP [MAX208ECNG+]; 162-896
0₫
Mã kho: 162896
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 4 |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 24 |
| Number of Receivers | 4 |
| Typical Single Supply Voltage | 5 V |
| Data Rate | 120kbps |
| Interface Standards | EIA/TIA-232-E, RS-232, V.28 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Height | 4.45mm |
| Length | 32.13mm |
| Dimensions | 32.13 x 7.87 x 4.45mm |
| Number of Receivers per Line | 1 |
| Power Supply Type | Single |
| Width | 7.87mm |
| Number of Drivers per Line | 1 |
