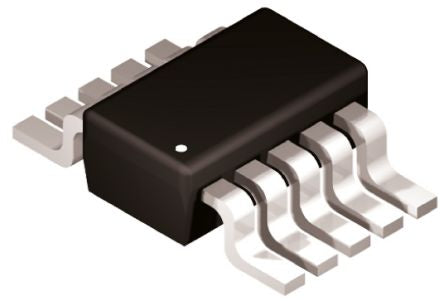

IC,RS-485,MAX1481CUB+ [MAX1481CUB+]; 189-9680
0₫
Mã kho: 1899680
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 1 |
| Package Type | μMAX |
| Mounting Type | Surface Mount |
| Pin Count | 10 |
| Number of Receivers | 1 |
| Typical Single Supply Voltage | 4.75 → 5.25 V |
| Data Rate | 250kbps |
| Number of Transceivers | 1 |
| Interface Standards | RS-422, RS-485 |
| Transmitter Signal Type | Differential |
| Receiver Signal Type | Differential |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 3.15mm |
| Number of Drivers per Line | 256 |
| Power Supply Type | Single |
| Dimensions | 3.15 x 3.15 x 0.965mm |
| Height | 0.965mm |
| Number of Receivers per Line | 256 |
| Width | 3.15mm |
