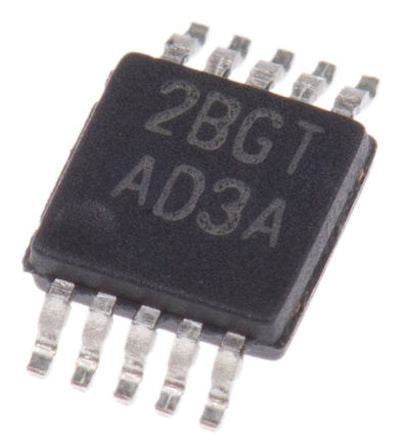

Intersil ISL3156EIUZ-T7A, Line Transceiver, RS-422, RS-485, 5 V, 10-Pin MSOP [ISL3156EIUZ-T7A]; 170-8094
by Intersil
0₫
Mã kho: 1708094
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 1 |
| Package Type | MSOP |
| Mounting Type | Surface Mount |
| Pin Count | 10 |
| Number of Receivers | 1 |
| Typical Single Supply Voltage | 5 V |
| Data Rate | 55Mbps |
| Number of Transceivers | 1 |
| Interface Standards | RS-422, RS-485 |
| Transmitter Signal Type | Differential |
| Receiver Signal Type | Differential |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Receivers per Line | 256 |
| Height | 0.95mm |
| Dimensions | 3.05 x 3.05 x 0.95mm |
| Length | 3.05mm |
| Number of Drivers per Line | 256 |
| Width | 3.05mm |
| Power Supply Type | Single |
