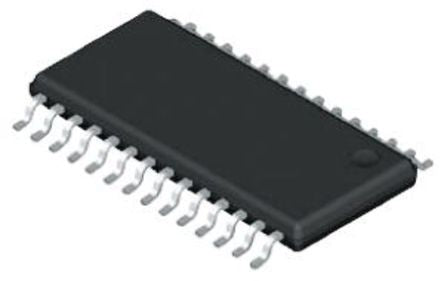

EXAR SP336ECY-L, Multichannel Line Transceiver, RS-232, RS-422, RS-485 4-TX 4-RX, 3.3 → 5 V, 28-Pin TSSOP [SP336ECY-L]; 913-4297
by EXAR
0₫
Mã kho: 9134297
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Transmitters | 4 |
Package Type | TSSOP |
Mounting Type | Surface Mount |
Pin Count | 28 |
Number of Receivers | 4 |
Typical Single Supply Voltage | 3.3 → 5 V |
Data Rate | 250kbps |
Interface Standards | RS-232, RS-422, RS-485 |
Transmitter Signal Type | Differential, Single Ended |
Receiver Signal Type | Differential, Single Ended |
Minimum Operating Temperature | 0 °C |
Maximum Operating Temperature | +70 °C |
Height | 1.05mm |
Width | 4.5mm |
Length | 9.8mm |
Dimensions | 9.8 x 4.5 x 1.05mm |
Power Supply Type | Single |
Number of Receivers per Line | 256 |
Number of Drivers per Line | 256 |
