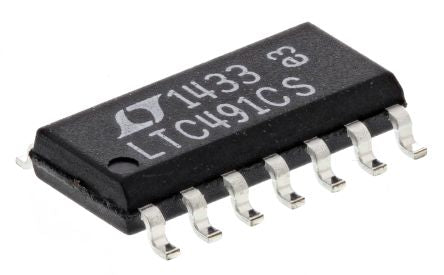

Linear Technology LTC491CS#PBF, Line Transceiver, RS-422, RS-485, 5 V, 14-Pin SOIC [LTC491CS#PBF]; 145-5972
0₫
Mã kho: 1455972
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 1 |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 14 |
| Number of Receivers | 1 |
| Typical Single Supply Voltage | 5 V |
| Number of Transceivers | 1 |
| Interface Standards | RS-422, RS-485 |
| Transmitter Signal Type | Differential |
| Receiver Signal Type | Differential |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Length | 8.74mm |
| Number of Drivers per Line | 32 |
| Dimensions | 8.74 x 3.99 x 1.48mm |
| Power Supply Type | Single |
| Number of Receivers per Line | 32 |
| Height | 1.48mm |
| Width | 3.99mm |
