Linear Technology LTC2803IDHC#PBF, Line Transceiver [LTC2803IDHC#PBF]; 155-7748
0₫
Mã kho: 1557748
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 2 |

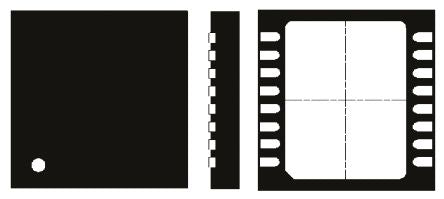

| Package Type | DFN |
| Mounting Type | Surface Mount |
| Pin Count | 16 |
| Number of Receivers | 2 |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Data Rate | 250kbps |
| Interface Standards | RS-232 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Drivers per Line | 1 |
| Number of Receivers per Line | 1 |
| Width | 3mm |
| Length | 5mm |
| Height | 0.7mm |
| Power Supply Type | Single |
| Dimensions | 5 x 3 x 0.7mm |
