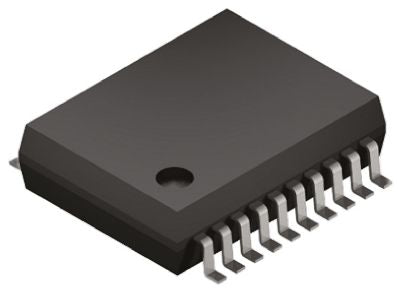

Linear Technology LTC1387IG#PBF, Line Transceiver, EIA-422, EIA-485, RS-422, RS-485 2-TX 2-RX 2-TRX, 5 V, 20-Pin SSOP [LTC1387IG#PBF]; 786-9819
0₫
Mã kho: 7869819
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 2 |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Number of Receivers | 2 |
| Typical Single Supply Voltage | 5 V |
| Number of Transceivers | 2 |
| Interface Standards | EIA-422, EIA-485, RS-422, RS-485 |
| Transmitter Signal Type | Differential, Single Ended |
| Receiver Signal Type | Differential, Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Width | 5.6mm |
| Power Supply Type | Single |
| Height | 1.95mm |
| Length | 7.5mm |
| Number of Receivers per Line | 1 |
| Dimensions | 7.5 x 5.6 x 1.95mm |
| Number of Drivers per Line | 1 |
