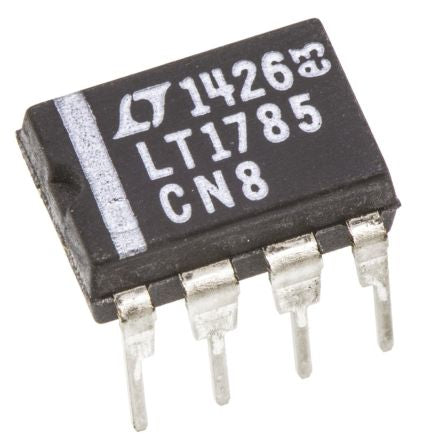

Linear Technology LT1785CN8#PBF, Line Transceiver, RS-422, RS-485, 8-Pin PDIP [LT1785CN8#PBF]; 411-920
0₫
Mã kho: 411920
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 1 |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 8 |
| Number of Receivers | 1 |
| Data Rate | 250kbps |
| Number of Transceivers | 1 |
| Interface Standards | RS-422, RS-485 |
| Transmitter Signal Type | Differential |
| Receiver Signal Type | Differential |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Width | 6.477mm |
| Power Supply Type | Single |
| Height | 3.81mm |
| Dimensions | 10.16 x 6.477 x 3.81mm |
| Number of Receivers per Line | 128 |
| Length | 10.16mm |
| Number of Drivers per Line | 128 |
