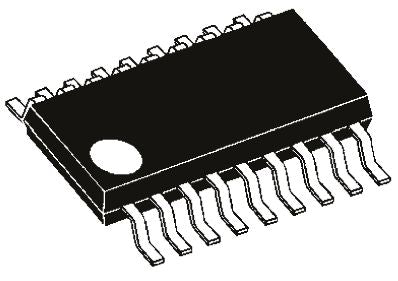

Linear Technology LT1180ACSW#PBF, Line Transceiver, RS-232 2-TX 2-RX, 5 V, 18-Pin SOIC W [LT1180ACSW#PBF]; 153-3411
0₫
Mã kho: 1533411
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 2 |
| Package Type | SOIC W |
| Mounting Type | Surface Mount |
| Pin Count | 18 |
| Number of Receivers | 2 |
| Typical Single Supply Voltage | 5 V |
| Data Rate | 250kBd |
| Interface Standards | RS-232 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Length | 11.76mm |
| Width | 7.6mm |
| Dimensions | 11.76 x 7.6 x 2.34mm |
| Power Supply Type | Single |
| Number of Receivers per Line | 1 |
| Height | 2.34mm |
| Number of Drivers per Line | 1 |
