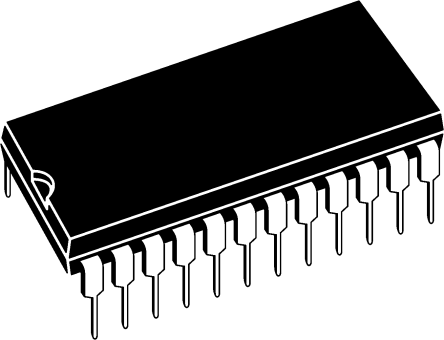

Linear Technology LT1133ACN#PBF, Line Transceiver, RS-232 3-TX 5-RX, 5 V, 24-Pin PDIP [LT1133ACN#PBF]; 545-5887
0₫
Mã kho: 5455887
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 3 |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 24 |
| Number of Receivers | 5 |
| Typical Single Supply Voltage | 5 V |
| Data Rate | 250kBd |
| Interface Standards | RS-232 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Length | 32.51mm |
| Number of Receivers per Line | 1 |
| Number of Drivers per Line | 1 |
| Dimensions | 32.51 x 6.48 x 3.3mm |
| Height | 3.3mm |
| Power Supply Type | Single |
| Width | 6.48mm |
