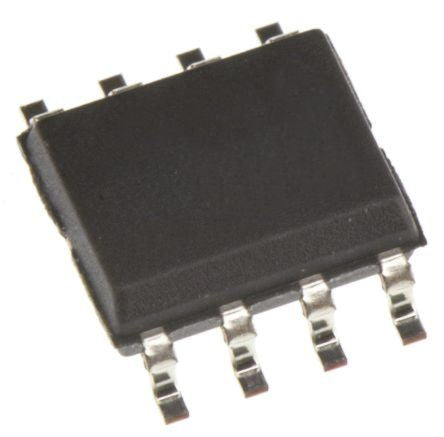

Analog Devices ADM3483ARZ-REEL7, Line Transceiver, 3.3 V, 8-Pin SOIC [ADM3483ARZ-REEL7]; 183-2104
0₫
Mã kho: 1832104
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 1 (RS485/RS422) |
| Package Type | SOIC N |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Number of Receivers | 1 (RS485/RS422) |
| Typical Single Supply Voltage | 3.3 V |
| Number of Transceivers | 1 (RS485/RS422) |
| Interface Standards | EIA RS-422/RS-485 |
| Transmitter Signal Type | Differential |
| Receiver Signal Type | Differential |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Width | 4mm |
| Height | 1.5mm |
| Number of Receivers per Line | 1 (RS485/RS422) |
| Length | 5mm |
| Number of Drivers per Line | 1 |
| Power Supply Type | Single |
| Dimensions | 5 x 4 x 1.5mm |
