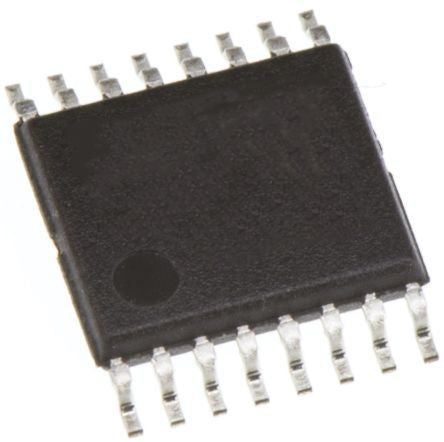

Analog Devices ADM3202ARUZ-REEL7, Line Transceiver 1 1 1, 3.3 V, 16-Pin TSSOP [ADM3202ARUZ-REEL7]; 183-2097
0₫
Mã kho: 1832097
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 1 (RS232) |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 16 |
| Number of Receivers | 1 (RS232) |
| Typical Single Supply Voltage | 3.3 V |
| Number of Transceivers | 1 (RS232) |
| Interface Standards | CCITT V.28, EIA-232-E |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 5.1 x 4.5 x 1.05mm |
| Height | 1.05mm |
| Number of Receivers per Line | 1 (RS232) |
| Length | 5.1mm |
| Number of Drivers per Line | 1 |
| Power Supply Type | Single |
| Width | 4.5mm |
