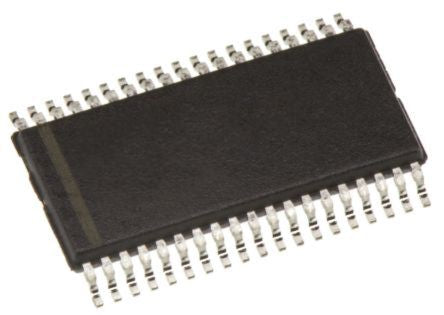

Analog Devices ADM2209EARUZ, Line Transceiver 1 1 1, 12 V, 38-Pin TSSOP [ADM2209EARUZ]; 183-2209
0₫
Mã kho: 1832209
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Transmitters | 1 (RS232) |
Package Type | TSSOP |
Mounting Type | Surface Mount |
Pin Count | 38 |
Number of Receivers | 1 (RS232) |
Typical Single Supply Voltage | 12 V |
Number of Transceivers | 1 (RS232) |
Interface Standards | EIA-232, V.28 |
Transmitter Signal Type | Single Ended |
Receiver Signal Type | Single Ended |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Typical Dual Supply Voltage | 3.15 → 5.5V |
Number of Receivers per Line | 1 (RS232) |
Power Supply Type | Dual, Single |
Number of Drivers per Line | 1 |
Dimensions | 9.8 x 4.5 x 0.95mm |
Width | 4.5mm |
Height | 0.95mm |
Length | 9.8mm |
