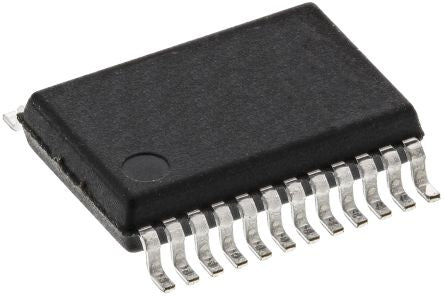

Analog Devices ADM207EARSZ, Line Transceiver, RS-232 5-TX 3-RX, 5 V, 24-Pin SSOP [ADM207EARSZ]; 145-6984
0₫
Mã kho: 1456984
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 5 |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 24 |
| Number of Receivers | 3 |
| Typical Single Supply Voltage | 5 V |
| Data Rate | 230kbps |
| Interface Standards | RS-232 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 8.5mm |
| Number of Drivers per Line | 1 |
| Power Supply Type | Single |
| Width | 5.6mm |
| Number of Receivers per Line | 1 |
| Dimensions | 8.5 x 5.6 x 1.85mm |
| Height | 1.85mm |
