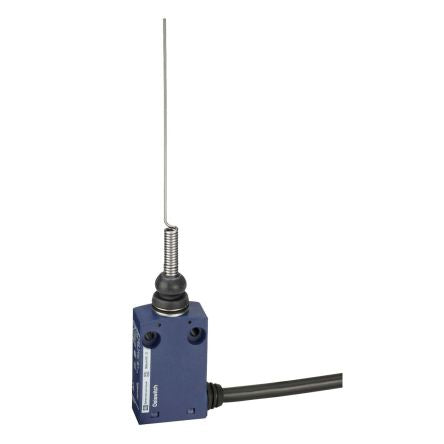

Limit Switch Cats Whisker NC&NO 1m Cab [XCMN2106L1]; 195-1712
0₫
Mã kho: 1951712
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Spring Return |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 1NC/1NO |
| IP Rating | IP65 |
| Maximum Current | 1.5 A |
| Housing Material | Plastic |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | Cable |
| Series | XCMN |
| Contact Type | Snap Action |
| Length | 30mm |
| Width | 16mm |
| Operating Force | 0.1N |
| Maximum Operating Temperature | +70°C |
| Dimensions | 30 x 16 x 182 mm |
| Mechanical Life Minimum | 5000000 cycles |
| Minimum Operating Temperature | -25°C |
| Depth | 182mm |
| Mounting Orientation | Cable |
