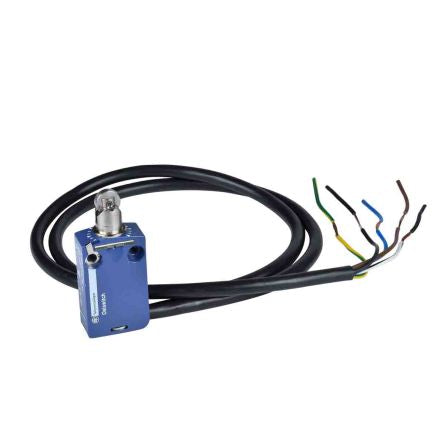

Limit Switch Roller Plunger NC&NO 7m Cab [XCMD2102L7]; 195-1692
0₫
Mã kho: 1951692
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Roller Plunger |
Pole and Throw Configuration | DPST |
Normal State Configuration | 1NC/1NO |
IP Rating | IP66, IP67, IP68 |
Maximum Current | 1.5 A |
Housing Material | Zamak |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 250V |
Connection Type | Cable |
Series | XCMD |
Contact Type | Snap Action |
Length | 30mm |
Width | 16mm |
Operating Force | 35N |
Depth | 70.4mm |
Mechanical Life Minimum | 10000000 cycles |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +70°C |
Dimensions | 30 x 16 x 70.4 mm |
Mounting Orientation | Cable |
