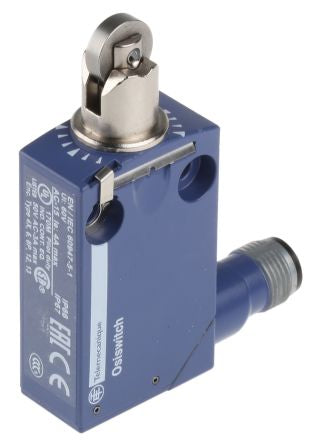

IP66, IP67, IP68 Snap Action Limit Switch Roller Plunger Zinc Alloy, NO/NC, 240V [XCMD2102C12]; 609-6625
0₫
Mã kho: 6096625
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Roller Plunger |
Pole and Throw Configuration | DP |
Normal State Configuration | NO/NC |
IP Rating | IP66, IP67, IP68 |
Maximum Current | 1.5 A |
Housing Material | Zinc Alloy |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 250V |
Series | OsiSense XC |
Contact Type | Snap Action |
Terminal Type | M12 Connector |
Length | 50mm |
Width | 30mm |
Maximum Operating Temperature | +70°C |
Mechanical Life Minimum | 10000000 cycles |
Minimum Operating Temperature | -25°C |
Dimensions | 50 x 30 x 16 mm |
Depth | 16mm |
