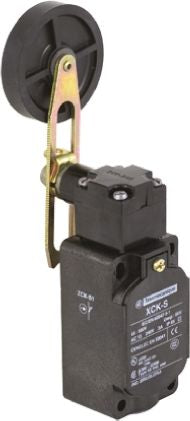

IP65 Snap Action Limit Switch Lever Plastic, NO/NC, 240V [XCKS149]; 418-6063
0₫
Mã kho: 4186063
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Lever |
| Pole and Throw Configuration | DP |
| Normal State Configuration | NO/NC |
| IP Rating | IP65 |
| Maximum Current | 0.125 |
| Housing Material | Plastic |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Series | OsiSense XC |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 72.5mm |
| Width | 40mm |
| Mechanical Life Minimum | 20000000 cycles |
| Depth | 36mm |
| Dimensions | 72.5 x 40 x 36 mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
