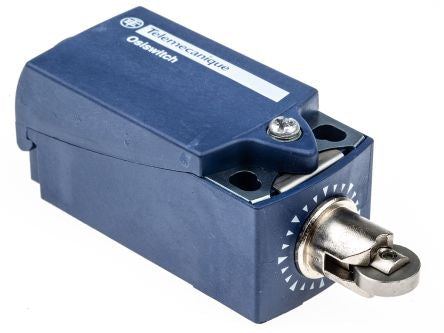

![Telemecanique Sensors XCKP2102P16 4473402](http://nguyenxuong.com/cdn/shop/products/F4473402-01_444x333.jpg?v=1594149911)
IP66, IP67 Snap Action Limit Switch Plunger Plastic, NO/NC, 240V [XCKP2102P16]; 447-3402
0₫
Mã kho: 4473402
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Plunger |
Pole and Throw Configuration | DP |
Normal State Configuration | NO/NC |
IP Rating | IP66, IP67 |
Maximum Current | 0.416666666666667 |
Housing Material | Plastic |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 250V |
Series | OsiSense XC |
Contact Type | Snap Action |
Terminal Type | Screw |
Length | 65mm |
Width | 31mm |
Maximum Operating Temperature | +70°C |
Mechanical Life Minimum | 10000000 cycles |
Depth | 30mm |
Dimensions | 65 x 31 x 30 mm |
Minimum Operating Temperature | -25°C |
