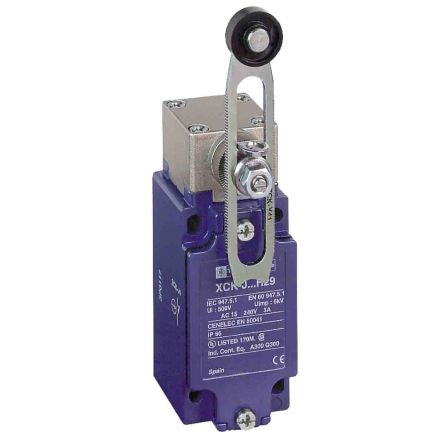

Limit Switch Roller Lever NC&NO Pg13.5 [XCKJ10543]; 195-1664
0₫
Mã kho: 1951664
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Roller Lever |
Pole and Throw Configuration | DPST |
Normal State Configuration | 1NC/1NO |
IP Rating | IP66 |
Maximum Current | 0.125 |
Housing Material | Zamak |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 250V |
Connection Type | PG 13 |
Series | XCKJ |
Contact Type | Snap Action |
Terminal Type | Screw |
Length | 40mm |
Width | 60mm |
Depth | 177mm |
Mounting Orientation | Cable |
Maximum Operating Temperature | +70°C |
Mechanical Life Minimum | 30000000 cycles |
Operating Force | 0.25Nm |
Minimum Operating Temperature | -25°C |
Dimensions | 40 x 60 x 177 mm |
