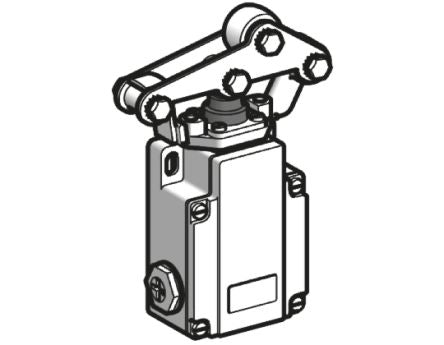

IP65 Slow Action Limit Switch Lever, NO/NC, 230V [XC1AC117]; 609-6445
0₫
Mã kho: 6096445
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Lever |
Pole and Throw Configuration | SP |
Normal State Configuration | NO/NC |
IP Rating | IP65 |
Maximum Current | 0.416666666666667 |
Maximum AC Voltage | 230V |
Maximum DC Voltage | 230V |
Series | OsiSense XC |
Contact Type | Slow Action |
Terminal Type | Screw |
Length | 113mm |
Width | 77mm |
Maximum Operating Temperature | +70°C |
Mechanical Life Minimum | 10000000 cycles |
Dimensions | 113 x 77 x 44 mm |
Minimum Operating Temperature | -25°C |
Depth | 44mm |
