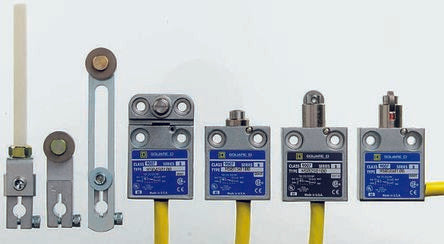

IP67 Snap Action Limit Switch Plunger Die Cast Zinc, NO/NC, 240V [9007MS01S0200]; 360-8950
0₫
Mã kho: 3608950
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 28V |
| Series | 9007 |
| Contact Type | Snap Action |
| Terminal Type | Wire Lead |
| Length | 39.6mm |
| Width | 15.87mm |
| Depth | 44.45mm |
| Maximum Operating Temperature | +105°C |
| Dimensions | 39.6 x 15.87 x 44.45 mm |
| Minimum Operating Temperature | -40°C |
