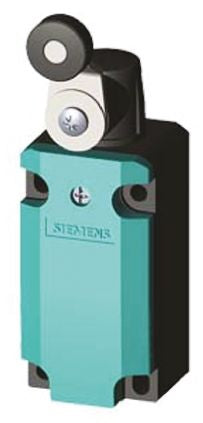

Sirius 3SE5 Safety Switch With Twist Lever Actuator, Plastic, NO/NC [3SE5132-0CJ01]; 769-6273
by Siemens
0₫
Mã kho: 7696273
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Twist Lever |
| Actuator Included | Yes |
| Normal State Configuration | NO/NC |
| Action Type | Snap |
| Connection Type | Screw |
| Housing Material | Plastic |
| Number of Cable Entries | 1 |
| Number of Contacts | 2 |
| Size of Cable Entries | M20 x 1.5 |
| Series | 3SE5 |
| Mechanical Life Minimum | 15000000 cycles |
| Width | 37.3mm |
| Length | 40.5mm |
| Depth | 78mm |
| Dimensions | 40.5 x 37.3 x 78 mm |
| Mounting Orientation | Universal |
| Range | SIRIUS |
