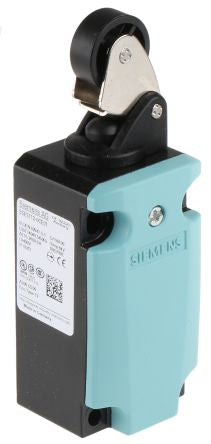

IP66, IP67 Snap Action Roller Lever Roller Lever Metal, NO/NC, 400V [3SE5112-0CE01]; 684-2910
by Siemens
0₫
Mã kho: 6842910
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Roller Lever |
Normal State Configuration | NO/NC |
IP Rating | IP66, IP67 |
Maximum Current | 6 A @ 24 V |
Housing Material | Metal |
Maximum AC Voltage | 400V |
Maximum DC Voltage | 400V |
Connection Type | Snap-On |
Contact Type | Snap Action |
Terminal Type | Screw |
Length | 119mm |
Width | 37.3mm |
Dimensions | 119 x 37.3 x 40.5 mm |
Mounting Orientation | Side |
Minimum Operating Temperature | -25°C |
Depth | 40.5mm |
Mechanical Life Minimum | 15000000 Operations |
Maximum Operating Temperature | +85°C |
