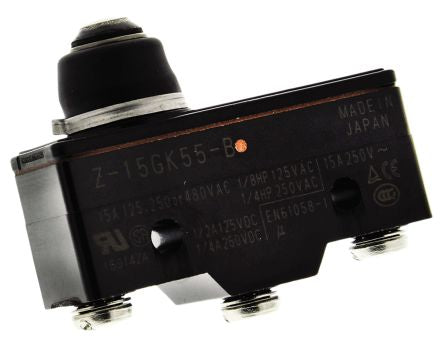

IP00 Snap Action Limit Switch Plunger, NO/NC, 500V [Z15GK55B]; 423-5294
by Omron
0₫
Mã kho: 4235294
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP00 |
| Maximum Current | 15 A |
| Maximum AC Voltage | 500V |
| Maximum DC Voltage | 250V |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 37.4mm |
| Width | 49.2mm |
| Maximum Operating Temperature | +80°C |
| Mechanical Life Minimum | 10000000 cycles |
| Depth | 17.45mm |
| Dimensions | 37.4 x 49.2 x 17.45 mm |
| Minimum Operating Temperature | -25°C |
