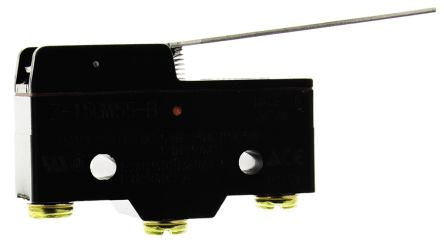

IP00 Snap Action Limit Switch Lever, NO/NC, 500V [Z-15GW55-B]; 436-0205
by Omron
0₫
Mã kho: 4360205
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Lever |
Pole and Throw Configuration | SPDT |
Normal State Configuration | NO/NC |
IP Rating | IP00 |
Maximum Current | 15 A |
Maximum AC Voltage | 500V |
Maximum DC Voltage | 250V |
Contact Type | Snap Action |
Terminal Type | Screw |
Length | 28.2mm |
Width | 49.2mm |
Depth | 17.45mm |
Dimensions | 28.2 x 49.2 x 17.45 mm |
Maximum Operating Temperature | +80°C |
Mechanical Life Minimum | 10000000 cycles |
Minimum Operating Temperature | -25°C |
