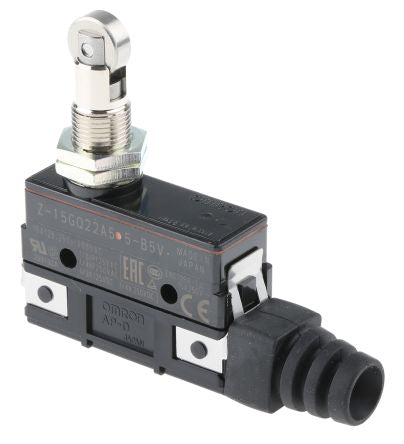

IP62 Snap Action Limit Switch Roller Plunger, NO/NC, 500V [Z-15GQ22A55-B5V]; 822-5591
by Omron
0₫
Mã kho: 8225591
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Roller Plunger |
Pole and Throw Configuration | SPDT |
Normal State Configuration | NO/NC |
IP Rating | IP62 |
Maximum Current | 15 A |
Maximum AC Voltage | 500V |
Maximum DC Voltage | 250V |
Connection Type | M4 |
Contact Type | Snap Action |
Terminal Type | Screw |
Length | 81.6mm |
Width | 35.5mm |
Depth | 17.45mm |
Maximum Operating Temperature | +80°C |
Mechanical Life Minimum | 20000000 Operations |
Dimensions | 81.6 x 35.5 x 17.45 mm |
Minimum Operating Temperature | -25°C |
