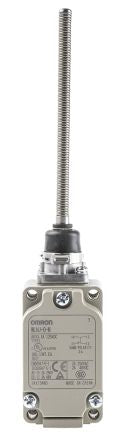

IP67 Snap Action Limit Switch Coil Spring, NO/NC, 500V [WLNJ-G-N]; 908-3284
by Omron
0₫
Mã kho: 9083284
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Coil Spring |
| Pole and Throw Configuration | SPST |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 0.416666666666667 |
| Maximum AC Voltage | 500V |
| Maximum DC Voltage | 250V |
| Connection Type | PG 13.5 |
| Series | WL |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 40mm |
| Width | 42mm |
| Mounting Orientation | Back, Front |
| Standards Met | CCCS, CE Certified, CULus Listed, EN/IEC, UL |
| Minimum Operating Temperature | -10°C |
| Dimensions | 40 x 42 x 203.7 mm |
| Operating Force | 1.47N |
| Maximum Operating Temperature | +85°C |
| Mechanical Life Minimum | 15000000 Operations |
| Depth | 203.7mm |
