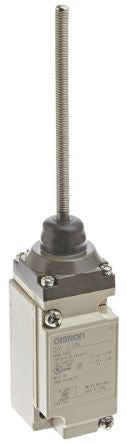

IP67 Snap Action Limit Switch Coil Spring, NC/NO, 600V [D4A-1116-N]; 827-9140
by Omron
0₫
Mã kho: 8279140
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Coil Spring |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 0.416666666666667 |
| Maximum AC Voltage | 600V |
| Maximum DC Voltage | 250V |
| Connection Type | 1/2 in NPT Conduit |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 75.5mm |
| Width | 42mm |
| Dimensions | 75.5 x 42 x 44 mm |
| Maximum Operating Temperature | +100°C |
| Mechanical Life Minimum | 50000000 Operations |
| Depth | 44mm |
| Mounting Orientation | Back, Front |
| Minimum Operating Temperature | -20°C |
