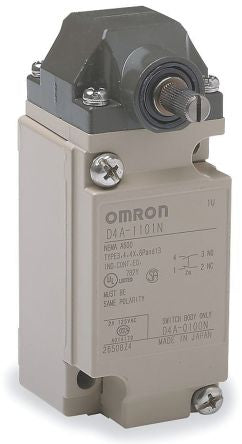

![Omron D4A-1101-N 8279128](http://nguyenxuong.com/cdn/shop/products/R8279128-01_242x445.jpg?v=1594062275)
IP67 Snap Action Limit Switch Roller Lever, NC/NO, 600V [D4A-1101-N]; 827-9128
by Omron
0₫
Mã kho: 8279128
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Roller Lever |
Pole and Throw Configuration | SPDT |
Normal State Configuration | NO/NC |
IP Rating | IP67 |
Maximum Current | 0.416666666666667 |
Maximum AC Voltage | 600V |
Maximum DC Voltage | 250V |
Connection Type | 1/2 in NPT Conduit |
Contact Type | Snap Action |
Terminal Type | Screw |
Length | 75.5mm |
Width | 42mm |
Maximum Operating Temperature | +100°C |
Depth | 44mm |
Mounting Orientation | Back, Front |
Mechanical Life Minimum | 50000000 Operations |
Minimum Operating Temperature | -40°C |
Dimensions | 75.5 x 42 x 44 mm |
