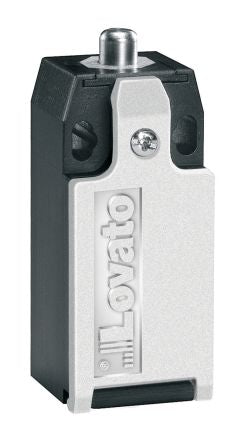

IP20, IP65 Snap Limit Switch Plunger Polymer Thermoplastic, NO/NC, 690V [KBA1S11]; 111-7883
by Lovato
0₫
Mã kho: 1117883
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | SPST-NC, SPST-NO |
| Normal State Configuration | NO/NC |
| IP Rating | IP20, IP65 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Polymer Thermoplastic |
| Maximum AC Voltage | 690V |
| Connection Type | Cable, 1/2 NPT |
| Contact Type | Snap |
| Terminal Type | Screw |
| Length | 30mm |
| Width | 74.5mm |
| Operating Force | 5N |
| Mechanical Life Minimum | 10000000 cycles |
| Mounting Orientation | Front |
| Output Type | Analogue |
| Minimum Operating Temperature | -25°C |
| Dimensions | 30 x 74.5 x 30 mm |
| Standards Met | CCC, CSA C22.2, CULus File No. E93601, EAC, EN 50047, IEC/EN 60204-1, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508, UL Listed |
| Depth | 30mm |
| Maximum Operating Temperature | +70°C |
