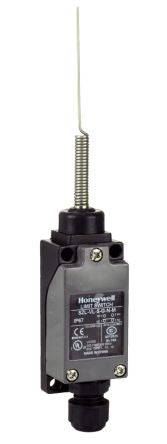

IP67 Snap Action Limit Switch Steel Wire Glass-Filled Die-Cast Metal, NC, NO, 380V [SZL-VL-S-G-N-M]; 144-8403
by Honeywell
0₫
Mã kho: 1448403
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Steel Wire |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 0.05 (220 V dc) A, 0.5 (380 V ac) A |
| Housing Material | Glass-Filled Die-Cast Metal |
| Maximum AC Voltage | 380V |
| Maximum DC Voltage | 220V |
| Connection Type | M12 Cable Gland |
| Series | SZL-VL |
| Contact Type | Snap Action |
| Terminal Type | M12 Connector |
| Length | 28.5mm |
| Width | 160mm |
| Mechanical Life Minimum | 10000000 cycles |
| Mounting Orientation | Front, Side |
| Minimum Operating Temperature | -20°C |
| Operating Force | 2N |
| Depth | 25.7mm |
| Dimensions | 28.5 x 160 x 25.7 mm |
| Standards Met | CCC, CE, CULus, NEMA 1, NEMA 12, NEMA 13 |
| Maximum Operating Temperature | +70°C |
