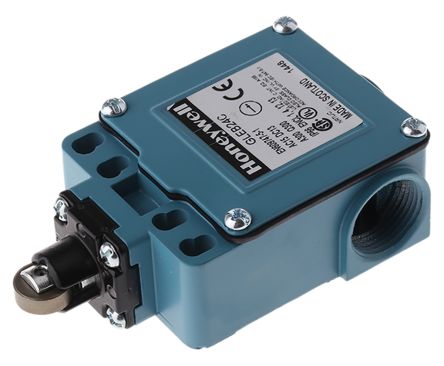

IP66 Snap Action Roller Plunger Roller Plunger Die Cast Zinc, 2NO/2NC, 300V [GLEB24C]; 223-3195
by Honeywell
0₫
Mã kho: 2233195
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Roller Plunger |
Pole and Throw Configuration | DPDT |
Normal State Configuration | 2NO/2NC |
IP Rating | IP66 |
Maximum Current | 0.416666666666667 |
Housing Material | Die Cast Zinc |
Maximum AC Voltage | 300V |
Maximum DC Voltage | 250V |
Connection Type | Snap-On |
Series | GLE |
Contact Type | Snap Action |
Terminal Type | PG13.5 Connector |
Length | 50mm |
Width | 65mm |
Maximum Operating Temperature | +85°C |
Mechanical Life Minimum | 15000000 Operations |
Mounting Orientation | Side |
Minimum Operating Temperature | -40°C |
Depth | 30mm |
Dimensions | 50 x 65 x 30 mm |
