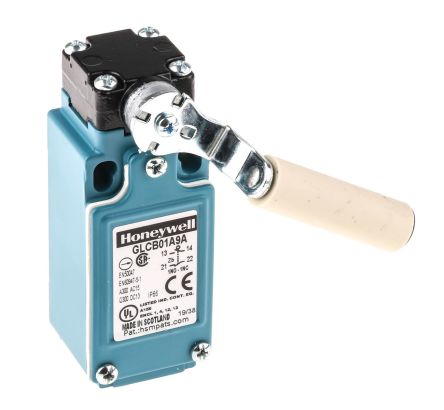

IP66 Snap Action Limit Switch Rotary Lever Die Cast Zinc, NO/NC, 300V [GLCB01A9A]; 308-1670
by Honeywell
0₫
Mã kho: 3081670
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Rotary Lever |
| Pole and Throw Configuration | SPDT 1NO/1NC |
| Normal State Configuration | NO/NC |
| IP Rating | IP66 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 300V |
| Maximum DC Voltage | 300V |
| Connection Type | Internal Screw Terminal Contact Block |
| Series | GLC |
| Contact Type | Snap Action |
| Terminal Type | PG13.5 Conduit |
| Length | 68.5mm |
| Width | 30.5mm |
| Maximum Operating Temperature | +85°C |
| Mechanical Life Minimum | 10000000 cycles |
| Depth | 26.35mm |
| Standards Met | CCC, CE, CSA, UL |
| Dimensions | 128.9 x 30.5 x 30 mm |
| Mounting Orientation | EN50047 |
| Minimum Operating Temperature | -40°C |
