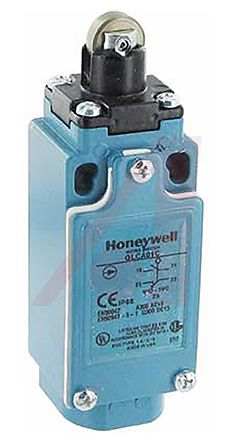

IP66 Snap Action Limit Switch Roller Plunger Die Cast Zinc, NO/NC, 600V [GLCA01C]; 808-3154
by Honeywell
0₫
Mã kho: 8083154
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Plunger |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP66 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 600V |
| Maximum DC Voltage | 250V |
| Connection Type | 1/2 in NPT Conduit |
| Series | GLC |
| Contact Type | Snap Action |
| Terminal Type | Wire Lead |
| Length | 30.5mm |
| Width | 30mm |
| Minimum Operating Temperature | -25°C |
| Dimensions | 30.5 x 30 x 55 mm |
| Mechanical Life Minimum | 15000000 Operations |
| Mounting Orientation | Vertical |
| Depth | 55mm |
| Maximum Operating Temperature | +85°C |
