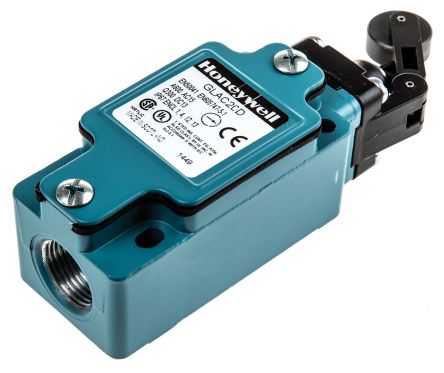

IP67 Snap Action Limit Switch Roller Lever Die Cast Zinc, 2NO/2NC, 600V [GLAC20D]; 223-3224
by Honeywell
0₫
Mã kho: 2233224
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | DPDT |
| Normal State Configuration | 2NO/2NC |
| IP Rating | IP67 |
| Maximum Current | 0.25 |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 600V |
| Maximum DC Voltage | 250V |
| Series | GLA |
| Contact Type | Snap Action |
| Terminal Type | 20 mm Conduit |
| Length | 145.8mm |
| Width | 42mm |
| Minimum Operating Temperature | -25°C |
| Depth | 42mm |
| Mechanical Life Minimum | 15000000 cycles |
| Maximum Operating Temperature | +85°C |
| Dimensions | 145.8 x 42 x 42 mm |
