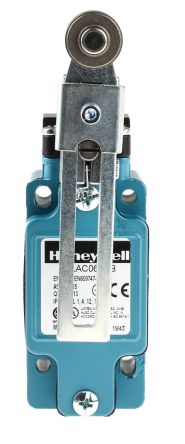

IP67 Slow Action Limit Switch Rotary Lever Die Cast Zinc, 2NC, 500V [GLAC06A2B]; 311-2229
by Honeywell
0₫
Mã kho: 3112229
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Rotary Lever |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 2NC |
| IP Rating | IP67 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 500V |
| Maximum DC Voltage | 250V |
| Series | GLA |
| Contact Type | Slow Action |
| Terminal Type | 20 mm Conduit |
| Length | 145.8mm |
| Width | 42mm |
| Mechanical Life Minimum | 15000000 cycles |
| Maximum Operating Temperature | +85°C |
| Depth | 42mm |
| Dimensions | 145.8 x 42 x 42 mm |
| Minimum Operating Temperature | -25°C |
