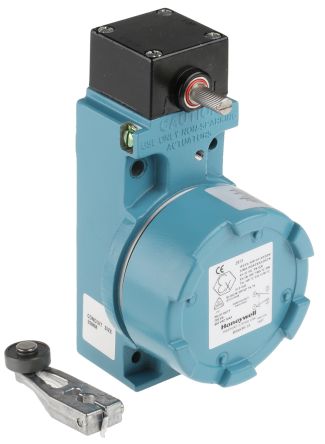

IP67 Snap Action Limit Switch Rotary Lever Aluminium, NO/NC, 600V [BX4A3K-1A]; 362-3230
by Honeywell
0₫
Mã kho: 3623230
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Rotary Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Aluminium |
| Maximum AC Voltage | 600V |
| Maximum DC Voltage | 250V |
| Series | BX |
| Contact Type | Snap Action |
| Terminal Type | 20 mm Conduit |
| Length | 146.05mm |
| Width | 50.8mm |
| Depth | 72.9mm |
| Hazardous Area Certification | ATEX |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -40°C |
| Dimensions | 146.05 x 50.8 x 72.9 mm |
